Toyota Landcruiser 79 Series Dual Cab Original GVM Tough Dog Suspension Kit
Toyota Landcruiser 79 Series Dual Cab Original GVM Tough Dog Suspension Kit
Regular price
$2,581.00 AUD
Regular price
Sale price
$2,581.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Front Lift: 50mm Rear Lift: 50mm

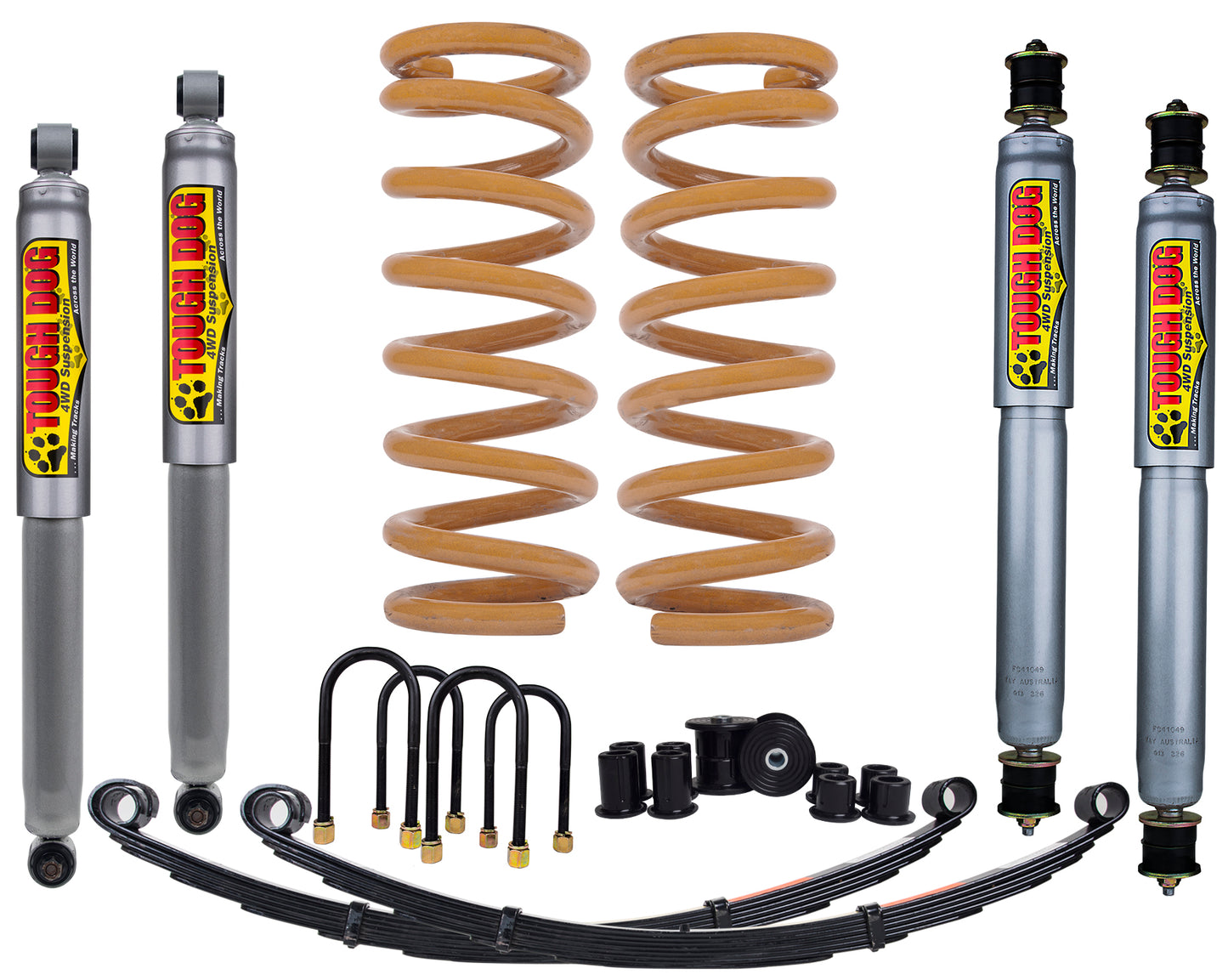

This Kit includes the following products
Front Suspension:
SHOCK ABSORBERS
FC41050 x 2 - Foam Cell Shock - up to 50mm Lift
COIL SPRINGS
| Part No. | Qty | Description | Notes |
| TDC950L | 1 | 50mm Lift Spring (Pair) | Petrol/Diesel/Bar |
| TDC950HL | 1 | 50mm Lift Spring (Pair) | Petrol/Diesel/Bar/Winch |
Rear Suspension:
SHOCK ABSORBERS -
FC41377 x 2 - Foam Cell Shock - up to 50mm Lift
LEAF SPRINGS -
| Part No. | Qty | Description | Notes |
| BP-019 | 2 | 0-200kg Load | 50mm Lift Spring |
| FS781-LH | 1 | Constant 400kg Load | 50mm Lift Spring Left Hand Side |
| FS781-RH | 1 | Constant 400kg Load | 50mm Lift Spring Right Hand Side |
| FS781HM-LH | 1 | Constant 600kg Load | 50mm Lift Spring Left Hand Side |
| FS781HM-RH | 1 | Constant 600kg Load | 50mm Lift Spring Right Hand Side |
| FS781XHD-LH | 1 | Constant 900kg Load | 50mm Lift Spring Left Hand Side |
| FS781XHD-RH | 1 | Constant 900kg Load | 50mm Lift Spring Right Hand Side |
ADDITIONAL COMPONENTS
| Part No. | Qty | Description | Notes |
| TDUB-038 | 2 | U-Bolt Kit (290mm Long) | Use with FS781XHD |
| TDUK-048 | 1 | Urethane Shackle Bushing Kit | Suit V8 & with greasable pins & shackles |
| TDGP-388 | 1 | Greasable Pin Kit | |
| TDGS-387/18 | 1 | Greasable Shackle Kit | |
| TDSB-008 | 1 | Heavy Duty Sway Bar | Fit with constant 900kg spring |
| TDUB-024 | 2 | U-Bolt Kit (230mm Long) | |
| TDUK-048/18 | 1 | Urethane Shackle Bushing Kit | Suit T/Carrier before 06/2009 suit standard pins and shackles only |
Tough Dog’s award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.
The ‘Foam Cell’ that makes all the difference is a micro-cellular foam insert that helps to drastically reduce the effects of shock fade, allowing your shocks to perform better for longer, even on the harshest of corrugations. Cavitation and Aeration are the undoing of any shock absorber. As the shock is worked harder, the oil and gas in the outer chamber begins to mix and form bubbles, lowering the viscosity of the oil. When this aerated oil passes through the valve, there is reduced resistance, stopping the shock form performing correctly. The Foam Cell insert, with its trapped gas micro cells takes up the empty space in the shock normally taken up by air or nitrogen gas. This eliminates the possibility of bubbles forming, allowing the shock to get on with the job with an unparalleled resistance to shock fade.- Twin tube design
- High temperature, all weather oil
- 18mm, double chrome-plated rod
- Additional welding on all studs & eyerings
- Multi stage Velocity Sensitive Valving
- Rod wiper seal and multi lip seal
- Hydraulic rebound stop
- 4 Year / unlimited km Recreational warranty (Conditions Apply)
- 3 Year / unlimited km Commercial warranty (Conditions Apply)
This Product may take a while to arrive.
Images are generic in nature.
