Toyota Hilux Leaf/Leaf (4/1979-1983) Tough Dog Suspension Kit
Toyota Hilux Leaf/Leaf (4/1979-1983) Tough Dog Suspension Kit
Regular price
$2,405.00 AUD
Regular price
Sale price
$2,405.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Front Lift: 50mm Rear Lift: 50mm

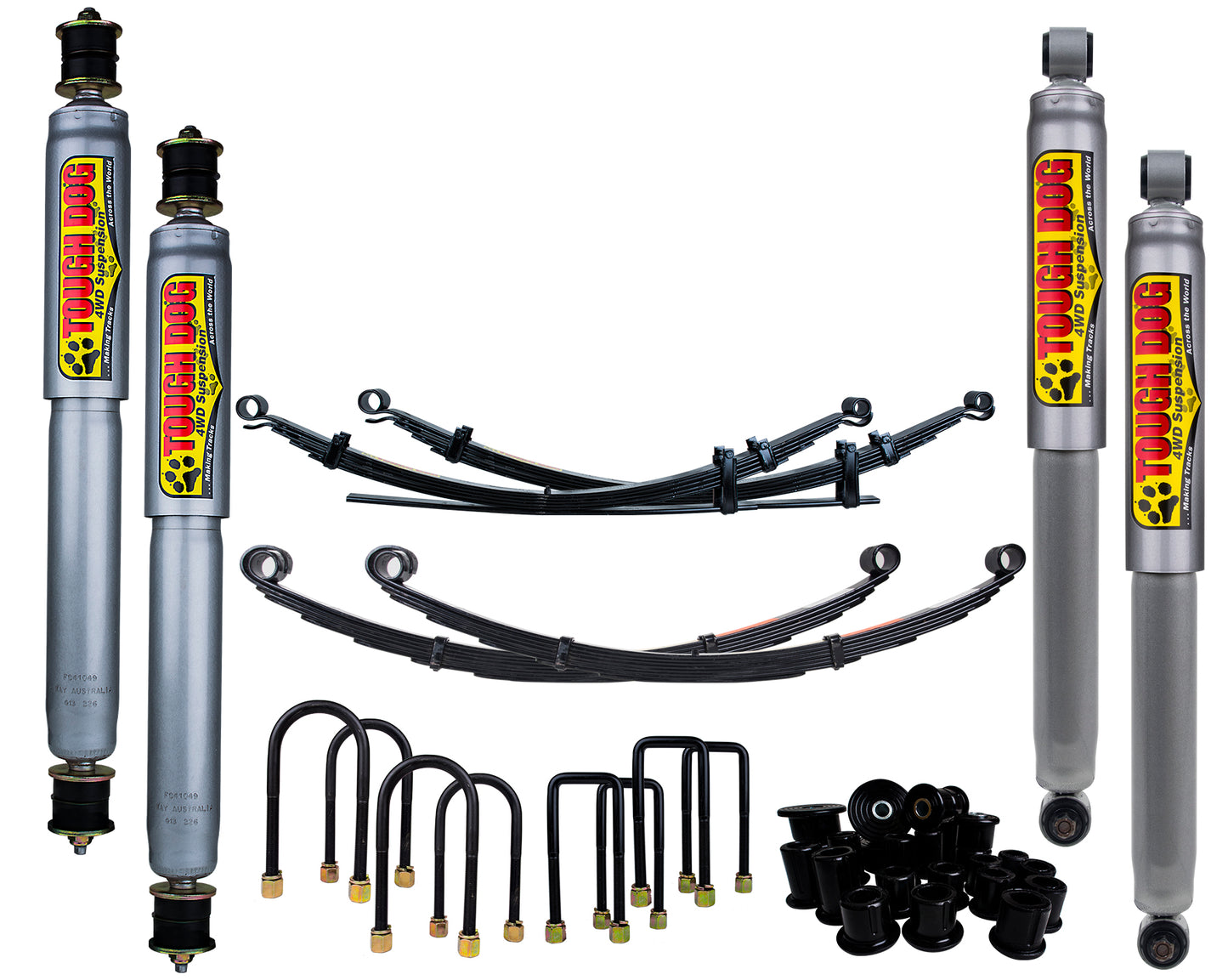

This Kit includes the following products
Front Suspension:
SHOCK ABSORBERS
FC44109 x 2 - Foam Cell Shock - Suit 50mm Lift
LEAF SPRINGS - 1 Left Hand Side and 1 Right Hand Side leaf spring pack should be ordered
| Part No. | Qty | Description | Notes |
| T75-LH | 1 | 50mm Lift Spring |
Bar Left Hand Side |
| T75-RH | 1 | 50mm Lift Spring | Bar Right Hand Side |
| T78-LH | 1 | 50mm Lift Spring | Bar/Winch Left Hand Side |
| T78-RH | 1 | 50mm Lift Spring | Bar/Winch Right Hand Side |
ADDITIONAL COMPONENTS
| Part No. | Qty | Description | Notes |
| TDUK-014 | 1 | Urethane Shackle Bushing Kit | |
| TDUB-015 | 1 | U-Bolt Kit | Suit D/S - 1 kit required |
| TDUB-016 | 1 | U-Bolt Kit | Suit P/S - 1 kit required |
| TDGP-385 | 1 | Greasable Pin Kit | |
| TDGS-384 | 1 | Greasable Shackle Kit | |
| TDDL-001 | 1 | Adjustable Diff Locator | To fit with ALL lift kits |
Rear Suspension:
SHOCK ABSORBERS - Choose correct year model
| Part No. | Qty | Description | Notes |
| FC41388 | 2 | Foam Cell Shock | Suit 04/1979-1983 50mm Lift |
| FC41377 | 2 | Foam Cell Shock | Suit 11/1983-1997 50mm Lift |
LEAF SPRINGS - Where stated 1 Left Hand Side and 1 Right Hand Side leaf spring pack should be ordered
| Part No. | Qty | Description | Notes |
| T46C-LH |
1 | 0-300kg load |
50mm Lift Spring Left Hand Side |
| T46C-RH |
1 | 0-300kg load |
50mm Lift Spring Right Hand Side |
| T46L-LH |
1 |
Constant 300kg load |
50mm Lift Spring Left Hand Side |
| T46L-LH |
1 | Constant 300kg load |
50mm Lift Spring Left Hand Side |
| BP-002-XHD | 2 | Constant 500kg Load | 50mm Lift Spring |
ADDITIONAL COMPONENTS
| Part No. | Qty | Description |
| TDUK-015 | 1 | Urethane Shackle Bushing Kit |
| TDUB-016 | 2 | U-Bolt Kit |
| TDGP-385 | 1 | Greasable Pin Kit |
| TDGS-386 | 1 | Greasable Shackle Kit |
Tough Dog’s award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.
The ‘Foam Cell’ that makes all the difference is a micro-cellular foam insert that helps to drastically reduce the effects of shock fade, allowing your shocks to perform better for longer, even on the harshest of corrugations. Cavitation and Aeration are the undoing of any shock absorber. As the shock is worked harder, the oil and gas in the outer chamber begins to mix and form bubbles, lowering the viscosity of the oil. When this aerated oil passes through the valve, there is reduced resistance, stopping the shock form performing correctly. The Foam Cell insert, with its trapped gas micro cells takes up the empty space in the shock normally taken up by air or nitrogen gas. This eliminates the possibility of bubbles forming, allowing the shock to get on with the job with an unparalleled resistance to shock fade.- Twin tube design
- High temperature, all weather oil
- 18mm, double chrome-plated rod
- Additional welding on all studs & eyerings
- Multi stage Velocity Sensitive Valving
- Rod wiper seal and multi lip seal
- Hydraulic rebound stop
- 4 Year / unlimited km Recreational warranty (Conditions Apply)
- 3 Year / unlimited km Commercial warranty (Conditions Apply)
This Product may take a while to arrive.
Images are generic in nature.
