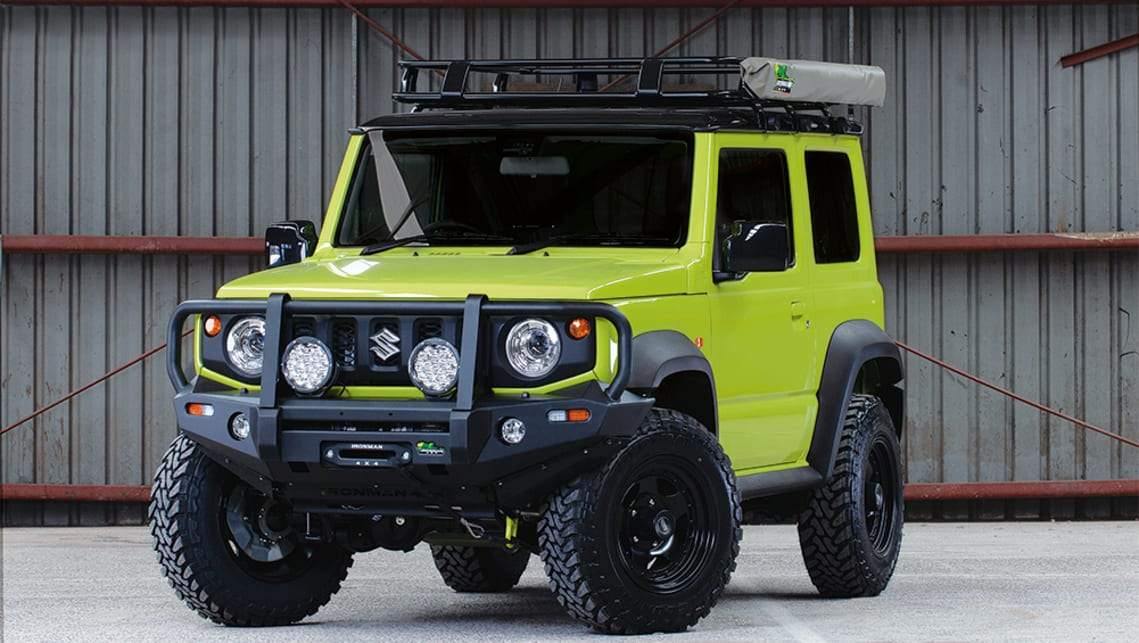

• Suzuki Jimny JB74 2019 to Now with 40mm Premium Kit with Tough Dog Shock Absorbers - TrakWell
1 2

Tough Dog

Suzuki Jimny JB74 2019 On Tough Dog Suspension Kit

Suzuki Jimny JB74 2019 On Tough Dog Suspension Kit

$1,527.00 AUD
$1,527.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Front Setup
Variant

This Kit is constructed from a selection of the following products:

Front Suspension:

SHOCK ABSORBERS

Part No. Qty Description Notes
FC31000 2 Foam Cell Shock Suit 40mm Lift ONLY
FC31001 2 Foam Cell Shock Suit 60mm & 80mm Lift



COIL SPRINGS

Part No. Qty Description Notes
TDC1000 1 40mm Lift Coil (Pair)
TDC1001 1 60mm Lift Coil (Pair) Fit TDUK-084 If Bar & Bar Winch
TDC1002 1 80mm Lift Coil (PAir) Fit TDUK If Bar & Bar/Winch



CASTER CORRECTION - 1 kit required for 60mm & 80mm Lift

TDUK-063 x 1 - 3 Degree Caster Correction Bush

PANHARD RODS

Part No. Qty Description Notes
TDPR-009 1 Adjustable Panhard Road RHD Required 60mm & 80mm Lift
TDPR-011 1 Adjustable Panhard Rod LHD Required 60mm & 80mm Lift



ADDITIONAL COMPONENTS

Part No. Qty Description Notes
TDSP-016 1 ABS Relocation & Vacuum Hoses Fit with ALL Kits
TDSP-017 1 Headlight Module Bracket Fit with ALL Kits
TDSP-018 1 Crossmember Drop Kit Fit with ALL Kits
TDUK-084 1 Front Coil Spacer (Pair) Fit with Bar & Bar/Winch



Rear Suspension:

SHOCK ABSORBERS -

Part No. Qty Description Notes
FC31002 2 Foam Cell Shock Suit 40mm Lift ONLY
FC31003 2 Foam Cell Shock Suit 60mm & 80mm Lift



COIL SPRINGS -

Part No. Qty Description Notes
TDC1003 1 40mm Lift Coil (Pair)
TDC1004 1 60mm Lift Coil (Pair)
TDC1005 1 80mm Lift Coil (Pair)



PANHARD ROD - REQUIRED 60mm & 80mm LIFT

TDPR-010 x 1 - Adjustable Panhard Rod

BRAKE HOSE KIT -

Part No. Qty Description Notes
TDBH-401 1 Rubber Brake Hose Kit 60mm & 80mm Lift
TDBH-402 1 Braided Brake Hose Kit 60mm & 80mm Lift
TDBH-403 1 Rubber Brake Hose Kit 40mm Lift - Rear L/H Hose



A heavier spring rate for this vehicle is not available, the addition of the front coil spacer is used as an alternative when accessories are fitted to restore lost ride height.



Tough Dog’s award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

The ‘Foam Cell’ that makes all the difference is a micro-cellular foam insert that helps to drastically reduce the effects of shock fade, allowing your shocks to perform better for longer, even on the harshest of corrugations. Cavitation and Aeration are the undoing of any shock absorber. As the shock is worked harder, the oil and gas in the outer chamber begins to mix and form bubbles, lowering the viscosity of the oil. When this aerated oil passes through the valve, there is reduced resistance, stopping the shock form performing correctly. The Foam Cell insert, with its trapped gas micro cells takes up the empty space in the shock normally taken up by air or nitrogen gas. This eliminates the possibility of bubbles forming, allowing the shock to get on with the job with an unparalleled resistance to shock fade.
  • Twin tube design
  • High temperature, all weather oil
  • 18mm, double chrome-plated rod
  • Additional welding on all studs & eyerings
  • Multi stage Velocity Sensitive Valving
  • Rod wiper seal and multi lip seal
  • Hydraulic rebound stop
  • 4 Year / unlimited km Recreational warranty (Conditions Apply)
  • 3 Year / unlimited km Commercial warranty (Conditions Apply)



This Product may take a while to arrive.

Images are generic in nature.
