Mazda BT-50 11/2011 to 08/2020 Tough Dog Suspension Kit

Mazda BT-50 11/2011 to 08/2020 Tough Dog Suspension Kit

$2,546.00 AUD
$2,546.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Front Setup
Rear Load

Note:
Fitment of Upper Control Arms to vehicles that have lifts greater than 50mm may suffer from premature ball joint failure.. See catalogue for more information.

Front Lift: 40mm  Rear Lift: 40mm

This Kit includes the following products

Front Suspension:

COMPLETE STRUT ASSEMBLY - 1 Left Hand Side and 1 Right Hand Side strut assembly should be ordered

Part No. Qty Description Notes
MAZ-003-LH 1 FC404500/TDC451 Bar Left Hand Side
MAZ-003-RH 1  FC404500/TDC451 Bar Right Hand Side
MAZ-004-LH 1 FC404500/TDC451HL Bar/Winch Left Hand Side
MAZ-004-RH 1 FC404500/TDC451HL Bar/Winch Right Hand Side



Rear Suspension:

SHOCK ABSORBERS - FC41232 x 2 - Foam Cell Shock - suit up to 40mm lift

LEAF SPRINGS -

Part No. Qty Description Notes
FS369C 2
 0-300 Load 40mm Lift
FS369L 2 Constant 300kg Load 40mm Lift
FS369LL 2 Constant 500kg Load 40mm Lift



 ADDITIONAL COMPONENTS -

Part No. Qty Description Notes
TDUK-070 1 Urethane Shackle Bushing Kit
TDUB-040 2 U-Bolt Kit Suit FS369L & FS369LL Spring
TDUB-039 2 U-Bolt Kit Suit FS369C Spring ONLY
TDGS-360 1 Greasable Shackle Kit
TDGP-668 1 Greasable Pin Kit
TDSP-007 1 Transmission Spacer Kit MUST be fitted to ALL Lift Kits





Tough Dog’s award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

The ‘Foam Cell’ that makes all the difference is a micro-cellular foam insert that helps to drastically reduce the effects of shock fade, allowing your shocks to perform better for longer, even on the harshest of corrugations. Cavitation and Aeration are the undoing of any shock absorber. As the shock is worked harder, the oil and gas in the outer chamber begins to mix and form bubbles, lowering the viscosity of the oil. When this aerated oil passes through the valve, there is reduced resistance, stopping the shock form performing correctly. The Foam Cell insert, with its trapped gas micro cells takes up the empty space in the shock normally taken up by air or nitrogen gas. This eliminates the possibility of bubbles forming, allowing the shock to get on with the job with an unparalleled resistance to shock fade.
  • Twin tube design
  • High temperature, all weather oil
  • 18mm, double chrome-plated rod
  • Additional welding on all studs & eyerings
  • Multi stage Velocity Sensitive Valving
  • Rod wiper seal and multi lip seal
  • Hydraulic rebound stop
  • 4 Year / unlimited km Recreational warranty (Conditions Apply)
  • 3 Year / unlimited km Commercial warranty (Conditions Apply)



This Product may take a while to arrive.

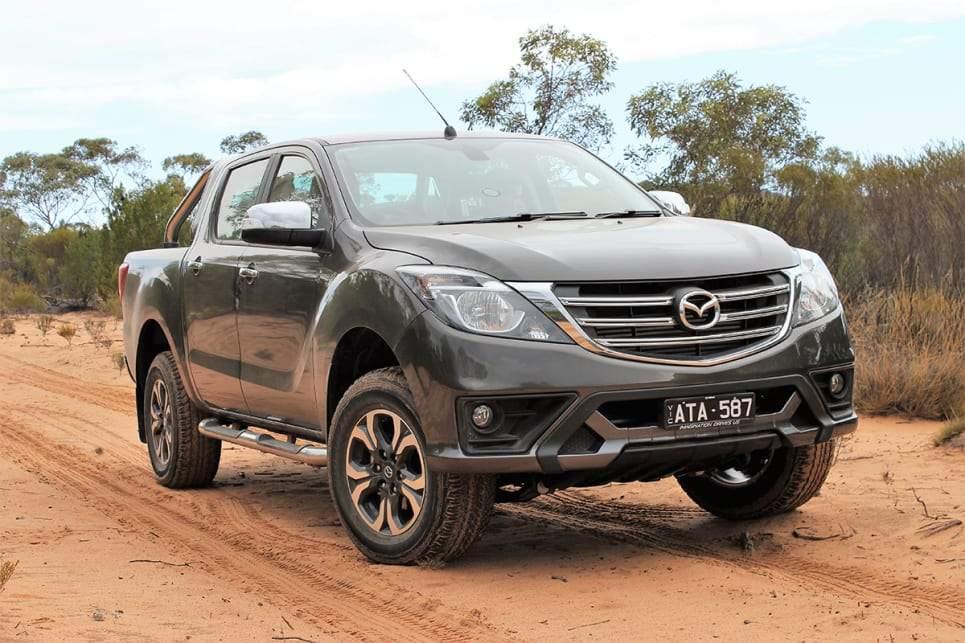

Images are generic in nature.
