• Ford Courier PC, PD, PE, PG & PH 1987 to 2006 with 50mm Economy Kit Tough Dog Shocks - TrakWell
1 3

Tough Dog

Ford Courier - PC - PH, 1987 to 2006 Tough Dog Suspension Kit

Ford Courier - PC - PH, 1987 to 2006 Tough Dog Suspension Kit

$1,595.00 AUD
$1,595.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Front Set Up
Rear Load

Front Lift: 45mm  Rear Lift: 45mm

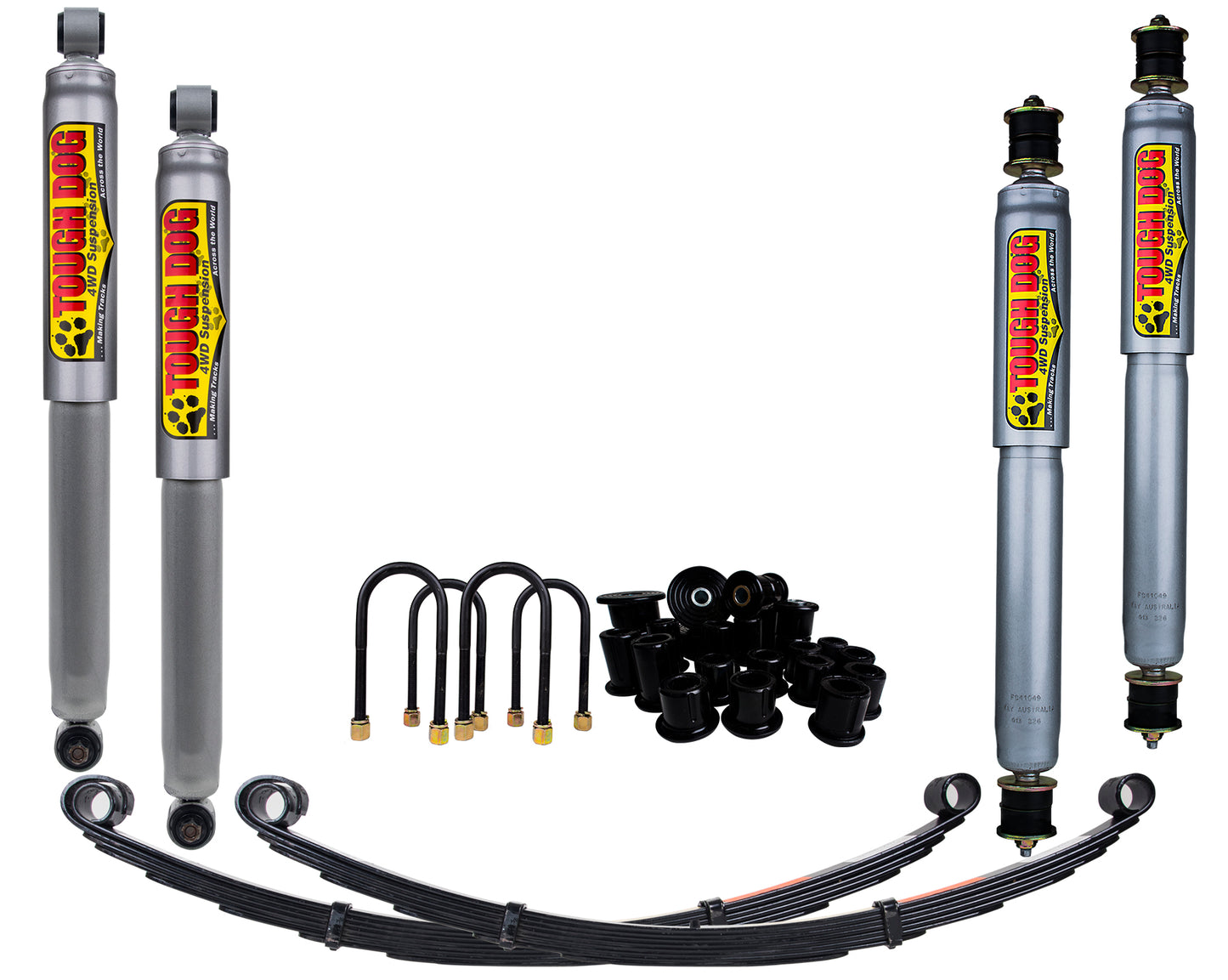

This Kit includes the following products

Front Suspension:

SHOCK ABSORBERS

Part No. Qty Description Notes
FC42051B 2
 Foam Cell Shock
 Suit up to 40mm lift
TDSK-020
 1
 Shock Mount Strengthening Kit
 Top Pin Mount Bracket

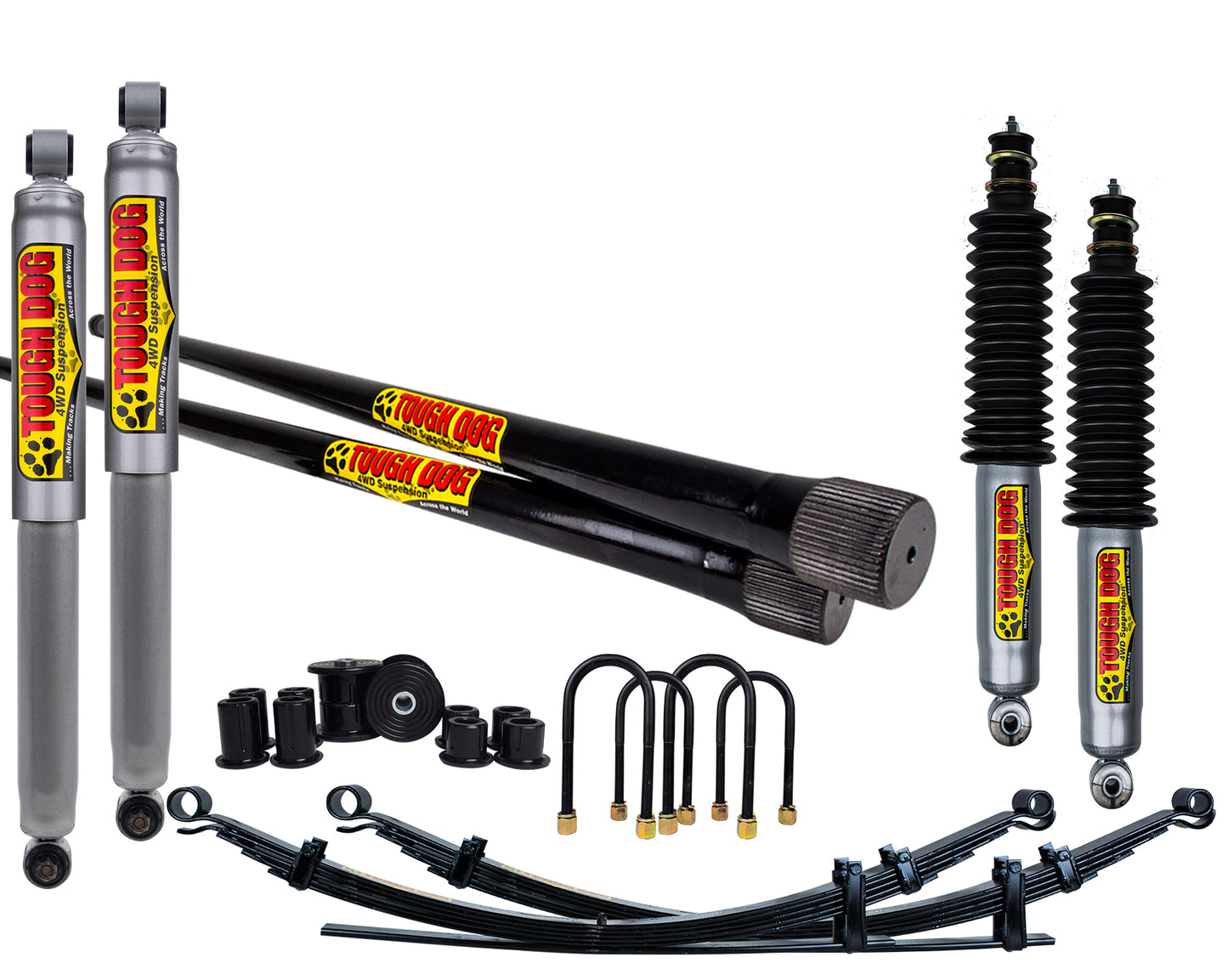

IF YOUR VEHICLE HAS A WINCH, TORSION BARS ARE REQUIRED:

4WTB-1440 x 1  - Replacement Torsion Bars (Pair) - 27mm/1028mm

If Torsion Bar is required, please select the Bullbar & Winch option

Rear Suspension:

SHOCK ABSORBERS - FC41232 x 2 (Foam Cell Shock) - suit up to 45mm lift

LEAF SPRINGS - choose applicable load rating

Part No. Qty Description Notes
FS368C-LH
 1
 0-300 Load

45mm Lift Left Hand Side
FS368C-RH
 1
 0-300 Load

45mm Lift Right Hand Side
FS368L-LH 1 Constant 300kg Load

45mm Lift Left Hand Side
FS368L-RH 1 Constant 300kg Load

45mm Lift Right Hand Side





COMPONENTS

Part No. Qty Description Notes
TDUK-069 1 Urethane Shackle Bushing Kit
TDUB-040 2
 U-Bolt Kit Suit FS368C-LH & -RH Only
TDUB-039 2 U-Bolt Kit Suit FS368L-LH & -RH Only
TDGS-368/1 1 Greasable Shackle Kit
TDGP-668 1 Greasable Pin Kit



Tough Dog’s award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

The ‘Foam Cell’ that makes all the difference is a micro-cellular foam insert that helps to drastically reduce the effects of shock fade, allowing your shocks to perform better for longer, even on the harshest of corrugations. Cavitation and Aeration are the undoing of any shock absorber. As the shock is worked harder, the oil and gas in the outer chamber begins to mix and form bubbles, lowering the viscosity of the oil. When this aerated oil passes through the valve, there is reduced resistance, stopping the shock form performing correctly. The Foam Cell insert, with its trapped gas micro cells takes up the empty space in the shock normally taken up by air or nitrogen gas. This eliminates the possibility of bubbles forming, allowing the shock to get on with the job with an unparalleled resistance to shock fade.
  • Twin tube design
  • High temperature, all weather oil
  • 18mm, double chrome-plated rod
  • Additional welding on all studs & eyerings
  • Multi stage Velocity Sensitive Valving
  • Rod wiper seal and multi lip seal
  • Hydraulic rebound stop
  • 4 Year / unlimited km Recreational warranty (Conditions Apply)
  • 3 Year / unlimited km Commercial warranty (Conditions Apply)



This Product may take a while to arrive.

Images are generic in nature.
